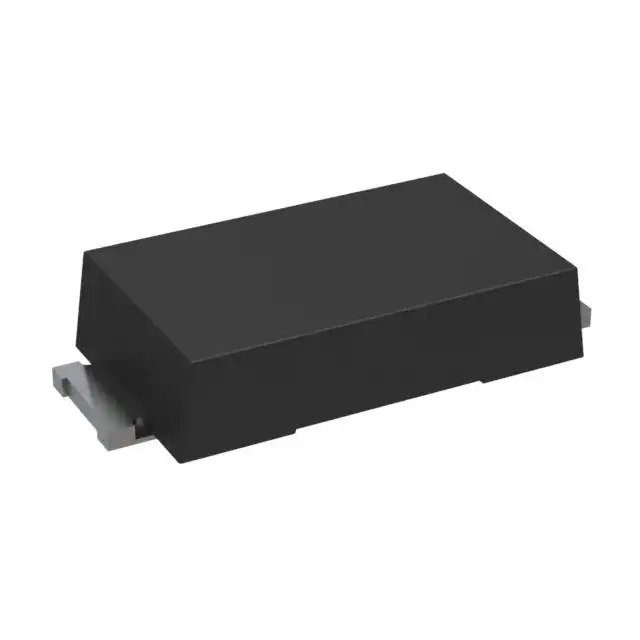

| Part Number | STPS2150AFN | STPS3150AFN | STPS2170AFN | STPS1150AFN |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V | 150 V | 170 V | 150 V |
| Current - Average Rectified (Io) | 2A | 3A | 2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 2 A | 820 mV @ 3 A | 820 mV @ 2 A | 820 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1.5 µA @ 150 V | 2 µA @ 150 V | 2.8 µA @ 170 V | 1 µA @ 150 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat Notch | SMAflat Notch | SMAflat Notch | SMAflat |
| Operating Temperature - Junction | 175°C | 175°C | 175°C | 175°C (Max) |
