Please send RFQ , we will respond immediately.

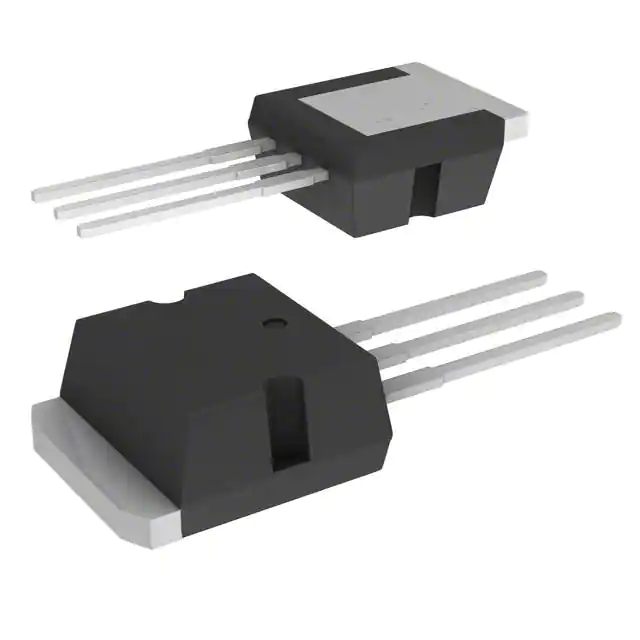

| Part Number | STPS20SM100SR | STPS20SM100ST | STPS20SM120SR | STPS30SM100SR | STPS20M100SR |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 120 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 20A | 20A | 20A | 30A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 20 A | 900 mV @ 20 A | 890 mV @ 20 A | 870 mV @ 30 A | 850 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 100 V | 30 µA @ 100 V | 210 µA @ 120 V | 45 µA @ 100 V | 40 µA @ 100 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK | TO-220 | I2PAK | I2PAK | I2PAK |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
