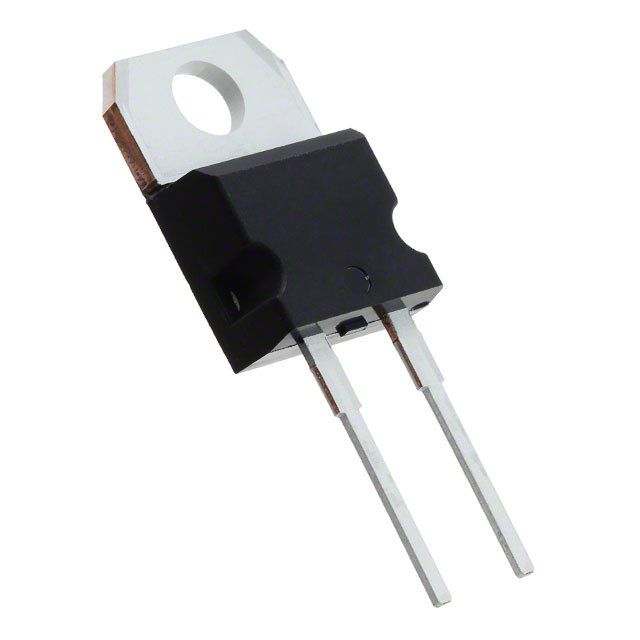

| Part Number | STPS20M60D | STPS20SM60D | STPS30M60D |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 20A | 20A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 20 A | 630 mV @ 20 A | 605 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 125 µA @ 60 V | 85 µA @ 60 V | 165 µA @ 60 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220AC | TO-220AC |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
