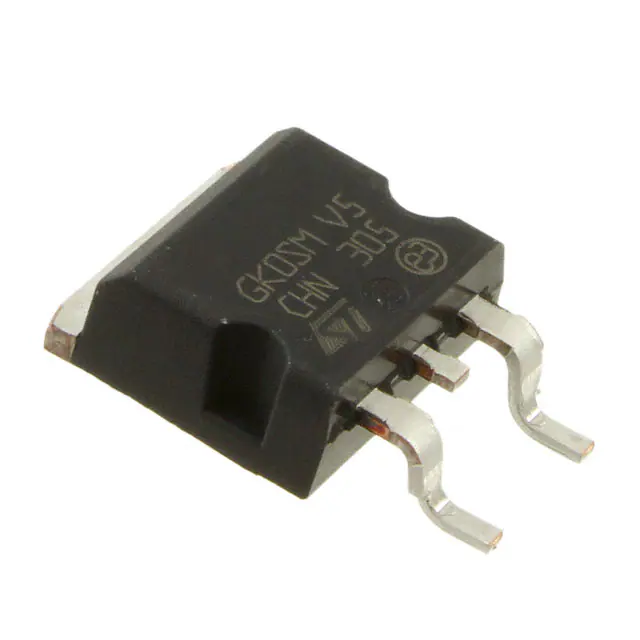

| Part Number | STPS20150CG | STPS20150CT | STPS20150CR | STPS20170CG | STPS30150CG | STPS10150CG |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V | 150 V | 150 V | 170 V | 150 V | 150 V |
| Current - Average Rectified (Io) (per Diode) | 10A | 10A | 10A | 10A | 15A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 10 A | 920 mV @ 10 A | 920 mV @ 10 A | 900 mV @ 10 A | 920 mV @ 15 A | 920 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 150 V | 5 µA @ 150 V | 5 µA @ 150 V | 15 µA @ 170 V | 6.5 µA @ 150 V | 2 µA @ 150 V |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
| Mounting Type | Surface Mount | Through Hole | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK | TO-220 | I2PAK | D2PAK | D²PAK | D2PAK |
