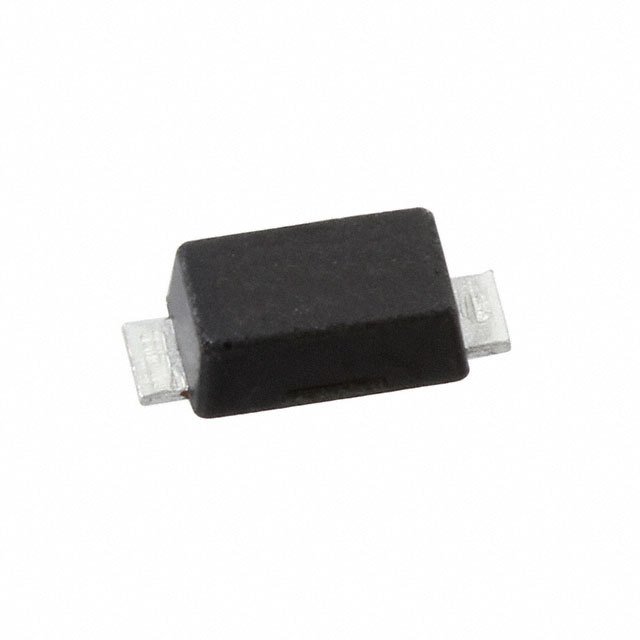

| Part Number | STPS1L60ZFY | STPS2L60ZFY | STPS1L40ZFY | STPS1L60ZF |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 40 V | 60 V |
| Current - Average Rectified (Io) | 1A | 2A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 1 A | 750 mV @ 2 A | 500 mV @ 1 A | 750 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 60 V | 50 µA @ 60 V | 35 µA @ 40 V | 50 µA @ 60 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 150°C | -40°C ~ 175°C |
