| Part Number | STPS1L40AFN | STPS2L40AFN | STPS1L60AFN | STPS140AFN | STPS1L30AFN |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 60 V | 40 V | 30 V |
| Current - Average Rectified (Io) | 1A | 2A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A | 430 mV @ 2 A | 570 mV @ 1 A | 550 mV @ 1 A | 395 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 35 µA @ 40 V | 220 µA @ 40 V | 50 µA @ 60 V | 12 µA @ 40 V | 200 µA @ 30 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

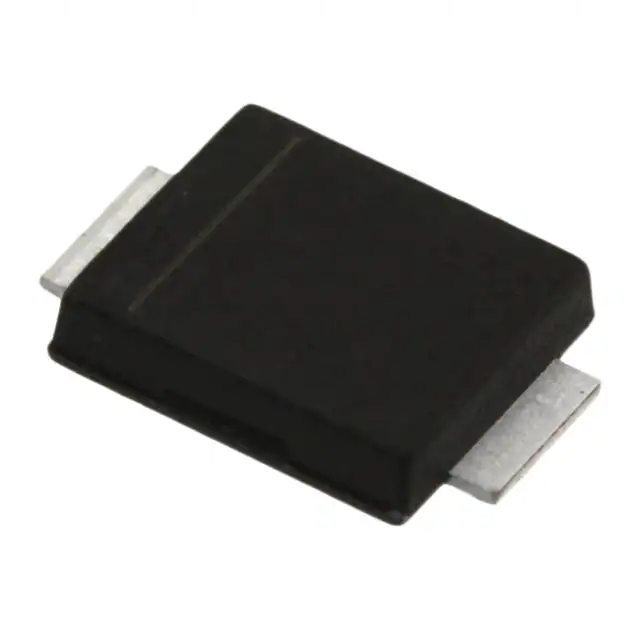

| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat Notch | SMAflat Notch | SMAflat Notch | SMAflat Notch | SMAflat Notch |
| Operating Temperature - Junction | 175°C | 150°C | 175°C | 150°C | 150°C |
