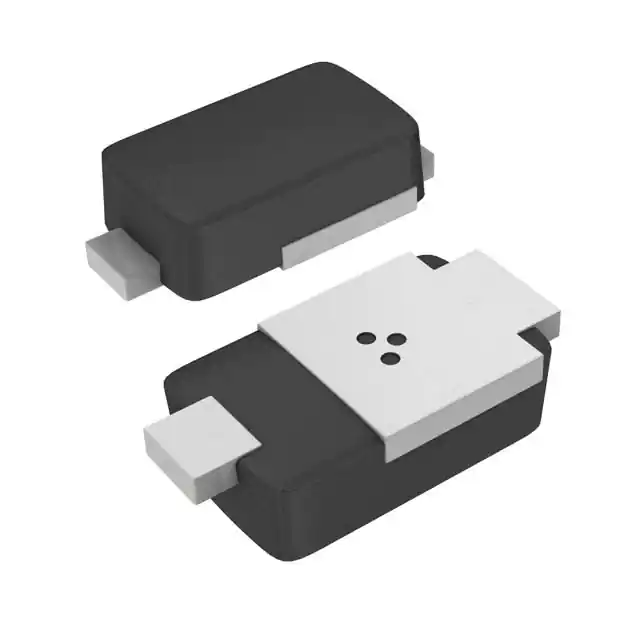

| Part Number | STPS1L30MF | STPS1L60MF | STPS1L40MF | STPS1L20MF | STPS1L30M |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 60 V | 40 V | 20 V | 30 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 390 mV @ 1 A | 570 mV @ 1 A | 500 mV @ 1 A | 430 mV @ 1 A | 390 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 390 µA @ 30 V | 50 µA @ 60 V | 35 µA @ 40 V | 75 µA @ 20 V | 390 µA @ 30 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-222AA | DO-222AA | DO-222AA | DO-222AA | DO-216AA |
| Supplier Device Package | STmite Flat | DO222-AA | STmite Flat | STmite Flat | STmite |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
