Please send RFQ , we will respond immediately.

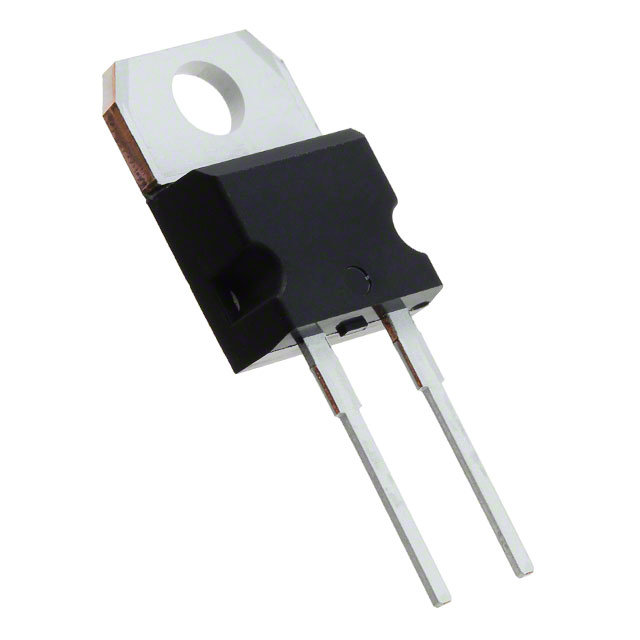

| Part Number | STPS1545D | STPS1545DY | STPS1545G | STPS1645D | STPS1545R | STPS1045D |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 15A | 15A | 15A | 16A | 15A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 840 mV @ 30 A | 570 mV @ 15 A | 840 mV @ 30 A | 570 mV @ 16 A | 840 mV @ 30 A | 600 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V | 100 µA @ 45 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-2 | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220AC | D2PAK | TO-220AC | I2PAK | TO-220AC |
| Operating Temperature - Junction | 175°C (Max) | -40°C ~ 175°C | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
