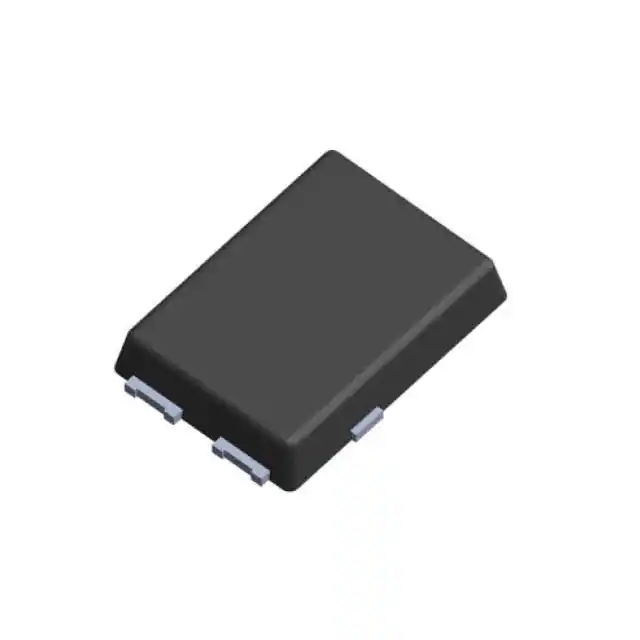

| Part Number | STPS10H60SFY | STPS10M60SFY | STPS10H60SF |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 10A | 10A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 790 mV @ 10 A | 650 mV @ 10 A | 790 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 20 µA @ 60 V | 50 µA @ 60 V | 20 µA @ 60 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) | TO-277A (SMPC) | TO-277A (SMPC) |
| Operating Temperature - Junction | -40°C ~ 175°C | -40°C ~ 175°C | -40°C ~ 175°C |
