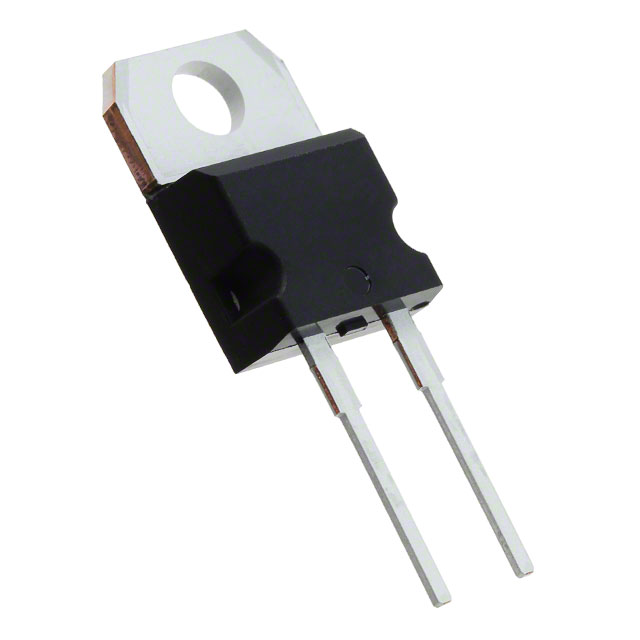

| Part Number | STPS1045D | STPS1545D | STPS1645D | STPS1045B |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 10A | 15A | 16A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 10 A | 840 mV @ 30 A | 570 mV @ 16 A | 630 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V | 200 µA @ 45 V | 200 µA @ 45 V | 100 µA @ 45 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-220AC | TO-220AC | TO-220AC | DPAK |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
