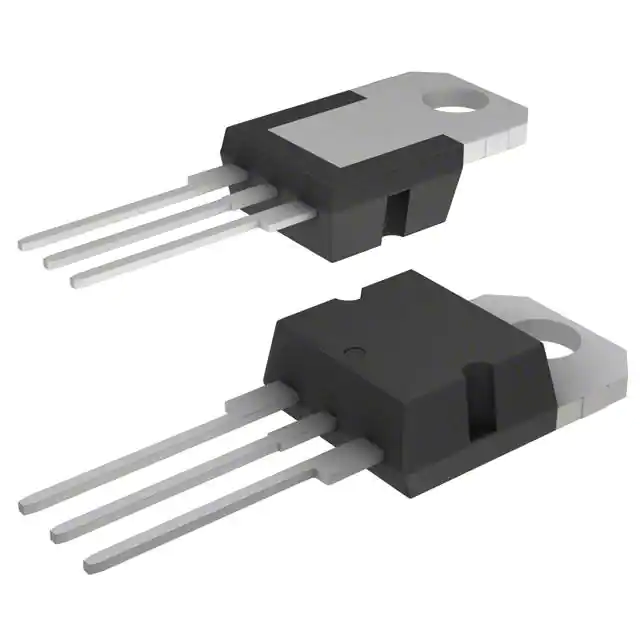

| Part Number | STP8N90K5 | STP6N90K5 | STP7N90K5 | STP8N80K5 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V | 900 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) | 6A (Tc) | 7A (Tc) | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 1.1Ohm @ 3A, 10V | 810mOhm @ 4A, 10V | 950mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | 17.7 nC @ 10 V | 16.5 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - | 425 pF @ 10 V | 450 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 130W (Tc) | 110W (Tc) | 110W (Tc) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220 | TO-220 | TO-220 | TO-220 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
