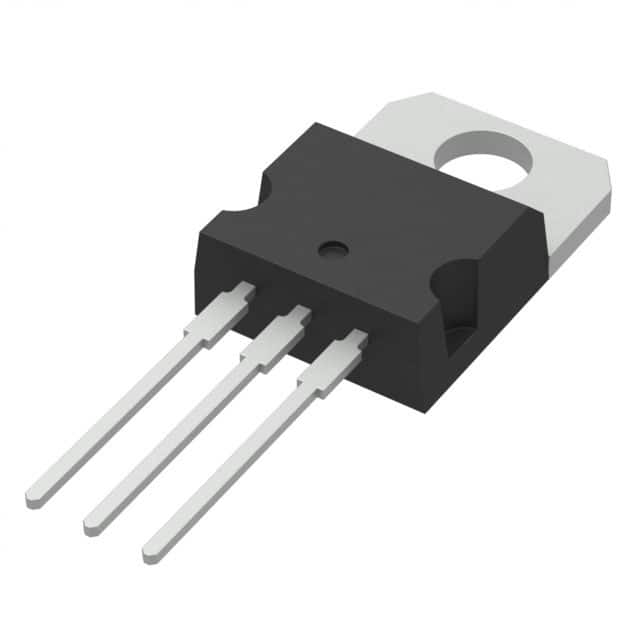

| Part Number | STP23N80K5 | STP2N80K5 | STP25N80K5 | STP3N80K5 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Not For New Designs |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) | 2A (Tc) | 19.5A (Tc) | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 280mOhm @ 8A, 10V | 4.5Ohm @ 1A, 10V | 260mOhm @ 19.5A, 10V | 3.5Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V | 3 nC @ 10 V | 40 nC @ 10 V | 9.5 nC @ 10 V |
| Vgs (Max) | ±30V | 30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 100 V | 95 pF @ 100 V | 1600 pF @ 100 V | 130 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 190W (Tc) | 45W (Tc) | 250W (Tc) | 60W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220 | TO-220 | TO-220 | TO-220 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
