| Part Number | STM8S207R8T6 | STM8S207RBT6 | STM8S207R8T6C | STM8S208R8T6 | STM8S207C8T6 | STM8S207R6T6 | STM8S207R8T3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | STM8 | STM8 | STM8 | STM8 | STM8 | STM8 | STM8 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 52 | 52 | 52 | 52 | 38 | 52 | 52 |
| Program Memory Size | 64KB (64K x 8) | 128KB (128K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 32KB (32K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 1.5K x 8 | 2K x 8 | 1.5K x 8 | 2K x 8 | 1.5K x 8 | 1K x 8 | 1.5K x 8 |
| RAM Size | 6K x 8 | 6K x 8 | 6K x 8 | 6K x 8 | 6K x 8 | 6K x 8 | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V | 2.95V ~ 5.5V | 2.95V ~ 5.5V | 2.95V ~ 5.5V | 2.95V ~ 5.5V | 2.95V ~ 5.5V | 2.95V ~ 5.5V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 10x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

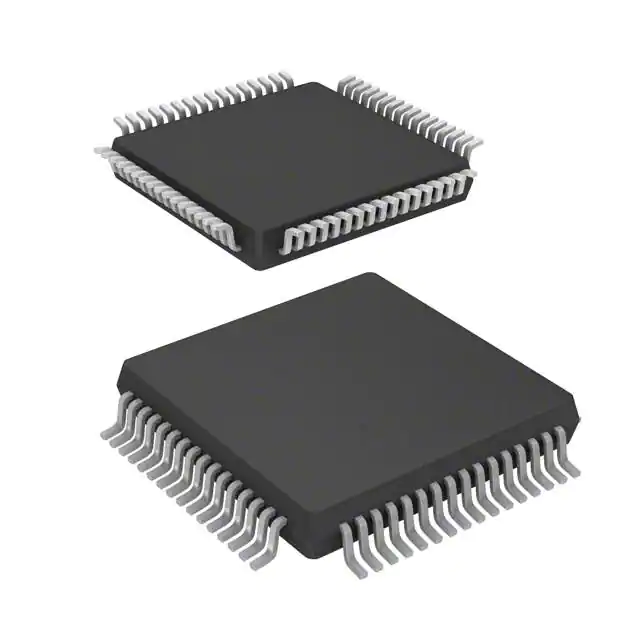

| Package / Case | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 48-LQFP | 64-LQFP | 64-LQFP |
| Supplier Device Package | - | 64-LQFP (10x10) | 64-LQFP (14x14) | 64-LQFP (10x10) | - | - | - |
