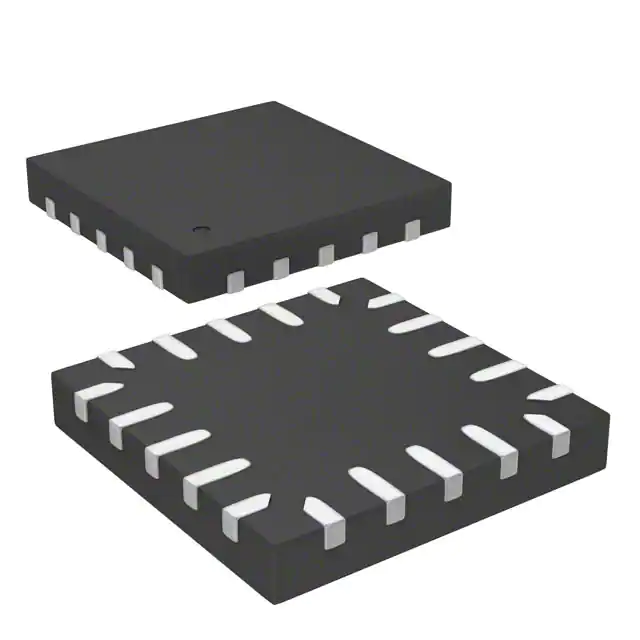

| Part Number | STM8L101F2U6TR | STM8L151F2U6TR | STM8L101F3U6TR | STM8L101G2U6TR | STM8L101F2P6TR | STM8L101F2U6ATR |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | STM8 | STM8 | STM8 | STM8 | STM8 | STM8 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, IrDA, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Infrared, POR, PWM, WDT | Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT | Infrared, POR, PWM, WDT | Infrared, POR, PWM, WDT | Infrared, POR, PWM, WDT | Infrared, POR, PWM, WDT |
| Number of I/O | 18 | 18 | 18 | 26 | 18 | 18 |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 8KB (8K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | 256 x 8 | 2K x 8 | - | - | - |
| RAM Size | 1.5K x 8 | 1K x 8 | 1.5K x 8 | 1.5K x 8 | 1.5K x 8 | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V | 1.8V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Data Converters | - | A/D 10x12b | - | - | - | - |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-UFQFN | 20-UFQFN | 20-UFQFN | 28-UFQFN | 20-TSSOP (0.173", 4.40mm Width) | 20-UFQFN |
| Supplier Device Package | 20-UFQFPN (3x3) | 20-UFQFPN (3x3) | 20-UFQFPN (3x3) | 28-UFQFPN (4x4) | 20-TSSOP | 20-UFQFPN (3x3) |
