Please send RFQ , we will respond immediately.

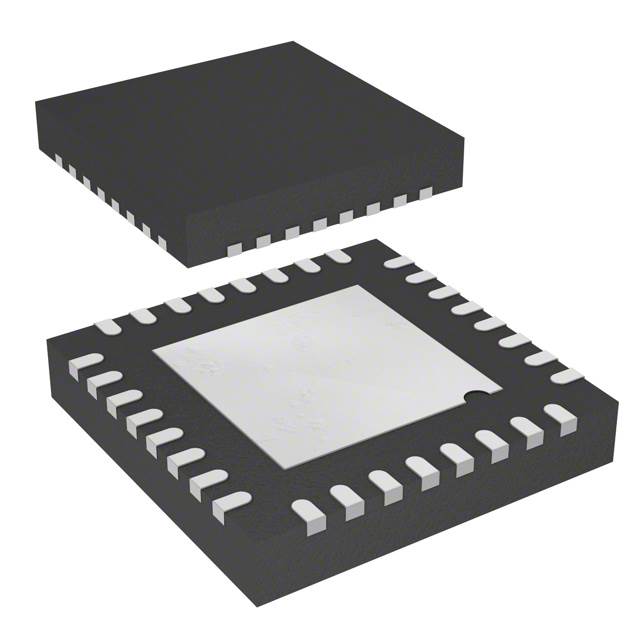

| Part Number | STM8AF6266UCY | STM8AF62A6UCY | STM8AF6266UDY | STM8AF6226UCY | STM8AF6246UCY | STM8AF6266IUCY | STM8AF6266TCY | STM8AF6266UAY | STM8AF6266UCX |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Not For New Designs | Active | Not For New Designs | Not For New Designs | Active | Not For New Designs | Active | Not For New Designs |
| Core Processor | STM8A | STM8A | STM8A | STM8A | STM8A | STM8A | STM8A | STM8A | STM8A |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 24MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 | 25 | 25 | 28 | 25 | 25 | 25 | 25 | 25 |
| Program Memory Size | 32KB (32K x 8) | 128KB (128K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 1K x 8 | 2K x 8 | 1K x 8 | 640 x 8 | 512 x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| RAM Size | 2K x 8 | 6K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b | A/D 7x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-UFQFN Exposed Pad | 32-LQFP | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | - | 32-VFQFPN (5x5) | - | 32-VFQFPN (5x5) | 32-VFQFPN (5x5) | 32-UFQFPN (5x5) | - | - | - |
