| Part Number | STM32WLE5JCI6 | STM32WL55JCI6 | STM32WLE4JCI6 | STM32WLE5J8I6 | STM32WLE5JBI6 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | LoRa™ | LoRaWAN 1.0, Sigfox | LoRaWAN 1.0, Sigfox | LoRa™ | LoRa™ |
| Modulation | BPSK, GFSK, GMSK, FSK, MSK | BPSK, GFSK, GMSK, FSK, MSK | BPSK, GFSK, GMSK, FSK, MSK | BPSK, GFSK, GMSK, FSK, MSK | BPSK, GFSK, GMSK, FSK, MSK |
| Frequency | 150MHz ~ 960MHz | 150MHz ~ 960MHz | 150MHz ~ 960MHz | 150MHz ~ 960MHz | 150MHz ~ 960MHz |
| Data Rate (Max) | 300kbps | 300kbps | 300kbps | 300kbps | 300kbps |
| Power - Output | 22dBm | 22dBm | 22dBm | 22dBm | 22dBm |
| Sensitivity | -148dBm | -148dBm | -148dBm | -148dBm | -148dBm |
| Memory Size | 256kB Flash, 64kB SRAM | 256kB Flash | 256kB Flash | 64kB Flash, 20kB SRAM | 128kB Flash, 48kB SRAM |
| Serial Interfaces | ADC, GPIO, I²C, SPI, IrDA, UART, USART | ADC, GPIO, I²C, SPI, IrDA, UART, USART | ADC, GPIO, I²C, SPI, IrDA, UART, USART | ADC, GPIO, I²C, SPI, IrDA, UART, USART | ADC, GPIO, I²C, SPI, IrDA, UART, USART |
| GPIO | 43 | 43 | 43 | 43 | 43 |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Receiving | 63mA ~ 68mA | 4.82mA | 4.82mA | 63mA ~ 68mA | 63mA ~ 68mA |
| Current - Transmitting | 160mA ~ 310mA | 21mA ~ 120mA | 21mA ~ 120mA | 160mA ~ 310mA | 160mA ~ 310mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

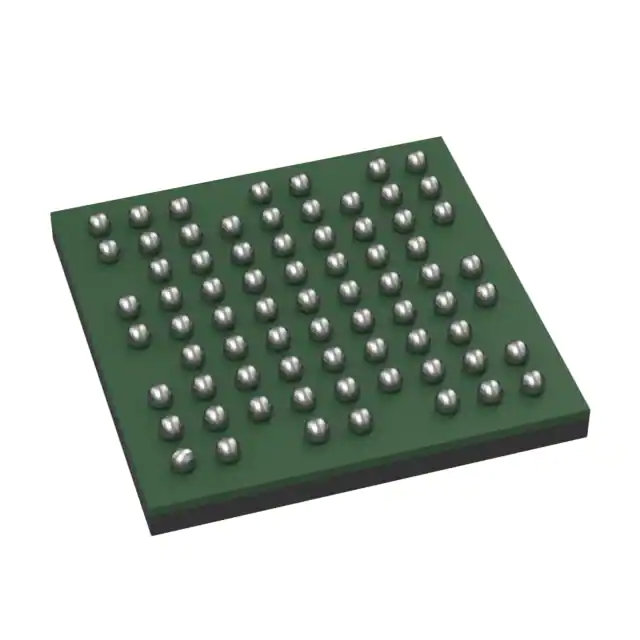

| Package / Case | 73-UFBGA | 73-UFBGA | 73-UFBGA | 73-UFBGA | 73-UFBGA |
| Supplier Device Package | 73-UFBGA (5x5) | 73-UFBGA (5x5) | 73-UFBGA (5x5) | 73-UFBGA (5x5) | 73-UFBGA (5x5) |
