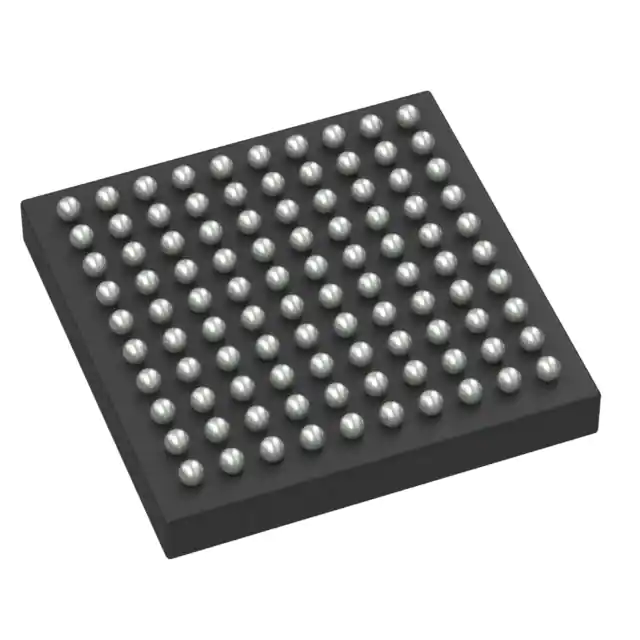

| Part Number | STM32WB55VEY6TR | STM32WB55VGY6TR | STM32WB55VEY7TR | STM32WB55VCY6TR |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.2, Thread, Zigbee® | Bluetooth v5.2, Thread, Zigbee® | Bluetooth v5.2, Thread, Zigbee® | Bluetooth v5.2, Thread, Zigbee® |
| Modulation | GFSK | GFSK | GFSK | GFSK |
| Frequency | 2.405GHz ~ 2.48GHz | 2.405GHz ~ 2.48GHz | 2.405GHz ~ 2.48GHz | 2.405GHz ~ 2.48GHz |
| Data Rate (Max) | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 6dBm | 6dBm | 6dBm | 6dBm |
| Sensitivity | -100dBm | -100dBm | -100dBm | -100dBm |
| Memory Size | 512kB Flash, 256kB SRAM | 1MB Flash, 256kB SRAM | 512kB Flash, 256kB SRAM | 256kB Flash, 128kB SRAM |
| Serial Interfaces | ADC, I²C, SPI, UART, USART, USB | ADC, I²C, SPI, UART, USART, USB | ADC, I²C, SPI, UART, USART, USB | ADC, I²C, SPI, UART, USART, USB |
| GPIO | 72 | 72 | 72 | 72 |
| Voltage - Supply | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Current - Receiving | 4.5mA ~ 7.9mA | 4.5mA | 4.5mA ~ 7.9mA | 4.5mA ~ 7.9mA |
| Current - Transmitting | 5.2mA ~ 12.7mA | 5.2mA | 5.2mA ~ 12.7mA | 5.2mA ~ 12.7mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-UFBGA, WLCSP | 100-UFBGA, WLCSP | 100-UFBGA, WLCSP | 100-UFBGA, WLCSP |
| Supplier Device Package | 100-WLCSP (4.4x4.38) | 100-WLCSP (4.4x4.38) | 100-WLCSP (4.4x4.38) | 100-WLCSP (4.4x4.38) |
