| Part Number | STM32L476QGI6TR | STM32L486QGI6TR | STM32L471QGI6TR | STM32L476QEI6TR |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 80MHz | 80MHz | 80MHz | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, PWM, WDT | Brown-out Detect/Reset, DMA, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Number of I/O | 109 | 109 | 109 | 109 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

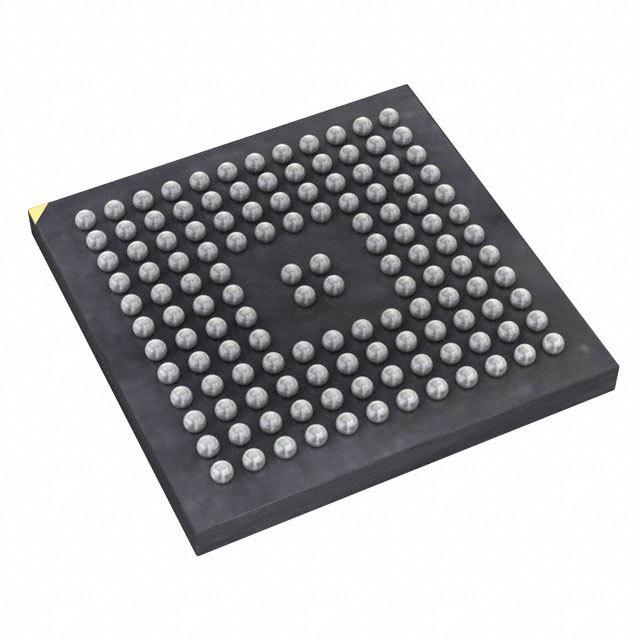

| Package / Case | 132-UFBGA | 132-UFBGA | 132-UFBGA | 132-UFBGA |
| Supplier Device Package | 132-UFBGA (7x7) | 132-UFBGA (7x7) | 132-UFBGA (7x7) | 132-UFBGA (7x7) |
