| Part Number | STM32L152CCU6 | STM32L152CCU6D | STM32L151CCU6 | STM32L152C6U6 | STM32L152C8U6 | STM32L152CBU6 | STM32L152CCT6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Not For New Designs | Not For New Designs | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB | I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT | Cap Sense, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, Cap Sense, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 37 | 37 | 37 | 37 | 37 | 37 | 37 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 32KB (32K x 8) | 64KB (64K x 8) | 128KB (128K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 8K x 8 |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 10K x 8 | 10K x 8 | 16K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.65V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 14x12b; D/A 2x12b | A/D 14x12b; D/A 2x12b | A/D 14x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 14x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

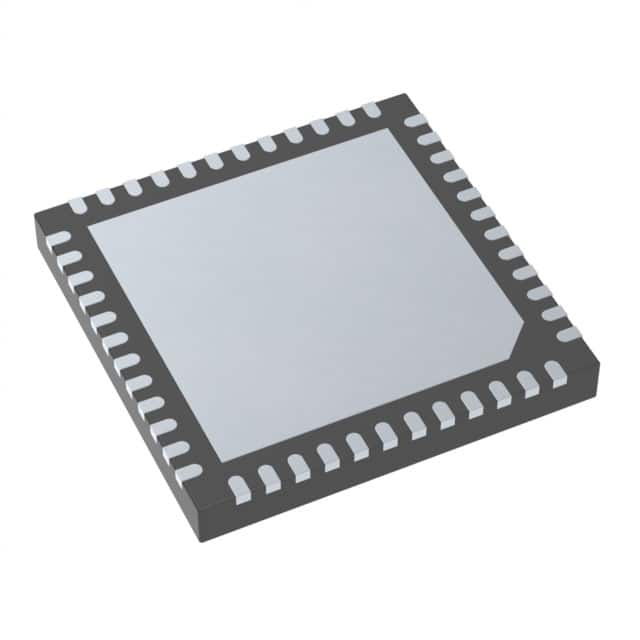

| Package / Case | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-LQFP |
| Supplier Device Package | 48-UFQFPN (7x7) | 48-UFQFPN (7x7) | 48-UFQFPN (7x7) | 48-UFQFPN (7x7) | 48-UFQFPN (7x7) | 48-UFQFPN (7x7) | 48-LQFP (7x7) |
