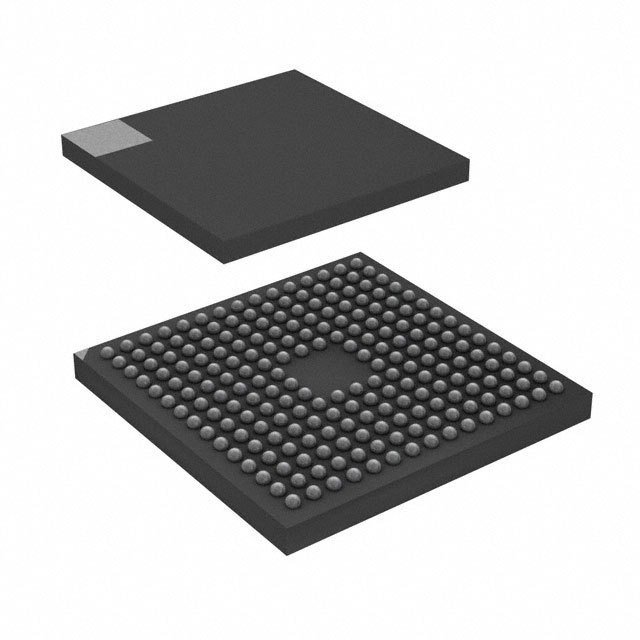

| Part Number | STM32H7B3NIH6Q | STM32H7B3VIH6Q | STM32H7A3NIH6Q | STM32H7B3LIH6Q | STM32H7B3NIH6 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete | Active | Active |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 280MHz | 280MHz | 280MHz | 280MHz | 280MHz |
| Connectivity | |||||
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 116 | 80 | 166 | 168 | 116 |
| Program Memory Size | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 1.4M x 8 | 1.4M x 8 | 1.4M x 8 | 1.4M x 8 | 1.4M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| Data Converters | A/D 20x16b; D/A 3x12b | A/D 16x16b; D/A 3x12b | A/D 20x16b; D/A 3x12b | A/D 24x16b; D/A 3x12b | A/D 20x16b; D/A 3x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 216-TFBGA | 100-TFBGA | 216-TFBGA | 225-TFBGA | 216-TFBGA |
| Supplier Device Package | 216-TFBGA (13x13) | 100-TFBGA (8x8) | 216-TFBGA (13x13) | 225-TFBGA (13x13) | 216-TFBGA (13x13) |
