Please send RFQ , we will respond immediately.

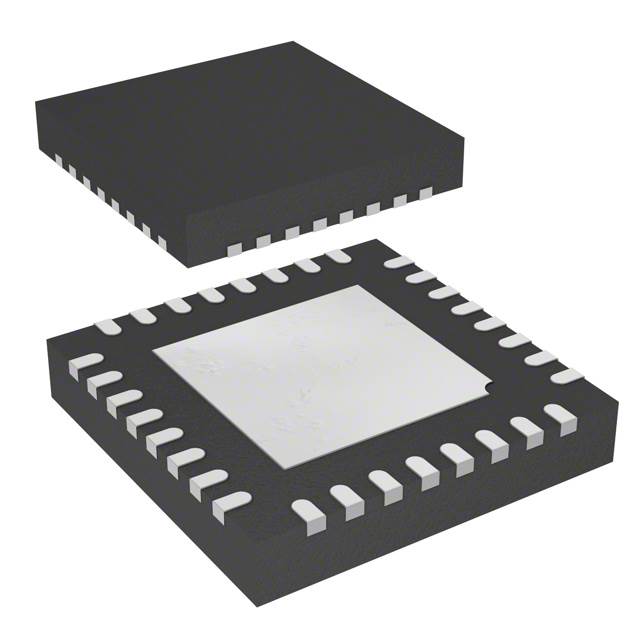

| Part Number | STM32G071KBU6N | STM32G071GBU6N | STM32G071KBT6N | STM32G071KBU6 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 64MHz | 64MHz | 64MHz | 64MHz |
| Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 30 | 26 | 30 | 30 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 36K x 8 | 36K x 8 | 36K x 8 | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 13x12b; D/A 2x12b | A/D 11x12b; D/A 2x12b | A/D 12x12b; D/A 2x12b | A/D 13x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-UFQFN Exposed Pad | 28-UFQFN | 32-LQFP | 32-UFQFN Exposed Pad |
| Supplier Device Package | 32-UFQFPN (5x5) | 28-UFQFPN (4x4) | 32-LQFP (7x7) | 32-UFQFPN (5x5) |
