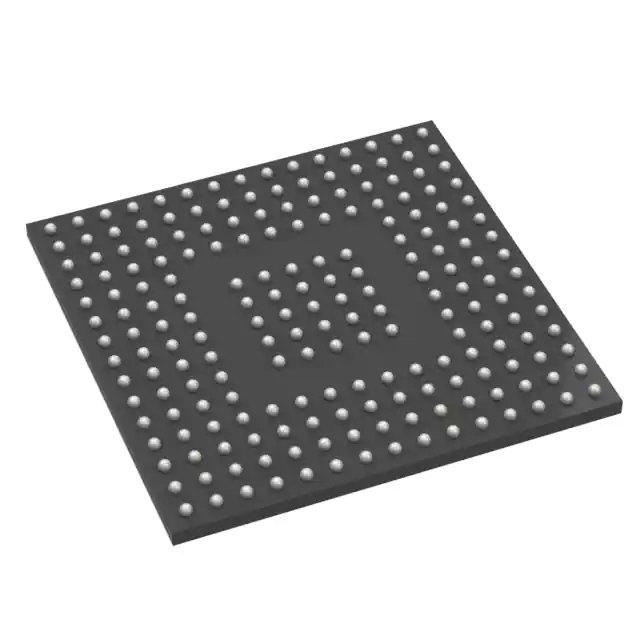

| Part Number | STM32F769AIY6UTR | STM32F769AIY6TR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 216MHz | 216MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 129 | 129 |
| Program Memory Size | 2MB (2M x 8) | 2MB (2M x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 180-UFBGA, WLCSP | 180-UFBGA, WLCSP |
| Supplier Device Package | 180-WLCSP (5.5x6) | 180-WLCSP (5.5x6) |
