Please send RFQ , we will respond immediately.

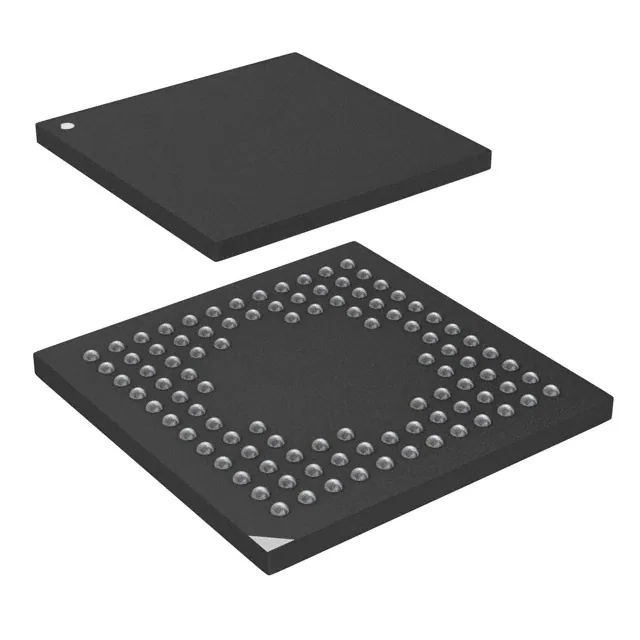

| Part Number | STM32F401VEH6 | STM32F401VET6 | STM32F411VEH6 | STM32F401VEH7 | STM32F401VBH6 | STM32F401VCH6 | STM32F401VDH6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 84MHz | 84MHz | 100MHz | 84MHz | 84MHz | 84MHz | 84MHz |
| Connectivity | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 81 | 81 | 81 | 81 | 50 | 81 | 81 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 384KB (384K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 96K x 8 | 96K x 8 | 128K x 8 | 96K x 8 | 64K x 8 | 64K x 8 | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-UFBGA | 100-LQFP | 100-UFBGA | 100-UFBGA | 100-UFBGA | 100-UFBGA | 100-UFBGA |
| Supplier Device Package | 100-UFBGA (7x7) | 100-LQFP (14x14) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) |
