| Part Number | STM32F373VCH6 | STM32F373VCT6 | STM32F378VCH6 | STM32F373VCH7 | STM32F372VCH6 | STM32F373V8H6 | STM32F373VBH6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4F | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 72MHz | 72MHz | 72MHz | 72MHz | 72MHz | 72MHz | 72MHz |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 84 | 84 | 83 | 84 | 84 | 84 | 84 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 64KB (64K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 16K x 8 | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 1.65V ~ 1.95V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 1x12b, 3x16b; D/A 3x12b | A/D 1x12b, 3x16b; D/A 3x12b | A/D 16x12b, 21x16b; D/A 3x12b | A/D 1x12b, 3x16b; D/A 3x12b | A/D 1x12b, 1x16b; D/A 1x12b | A/D 1x12b, 3x16b; D/A 3x12b | A/D 1x12b, 3x16b; D/A 3x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

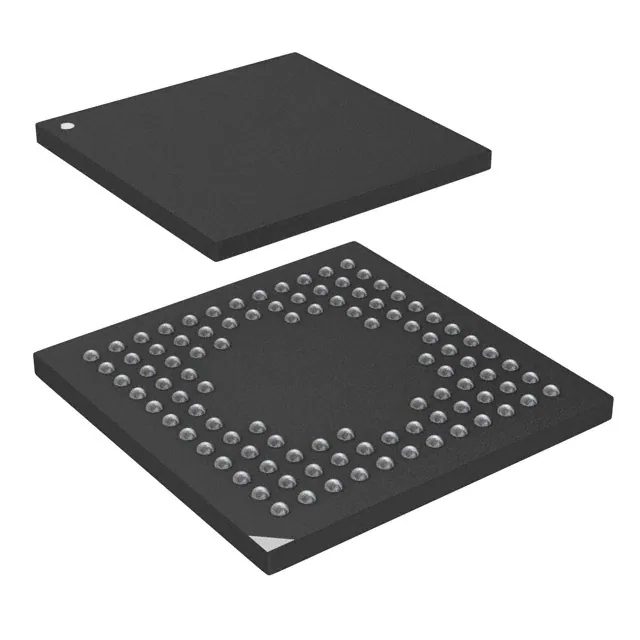

| Package / Case | 100-UFBGA | 100-LQFP | 100-UFBGA | 100-UFBGA | 100-UFBGA | 100-UFBGA | 100-UFBGA |
| Supplier Device Package | 100-UFBGA (7x7) | 100-LQFP (14x14) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 100-UFBGA (7x7) |
