Please send RFQ , we will respond immediately.

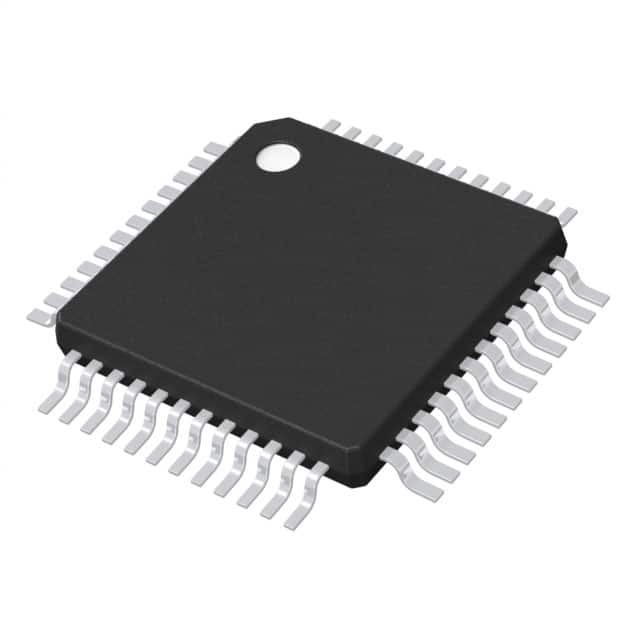

| Part Number | STM32F358CCT6 | STM32F358RCT6 | STM32F378CCT6 | STM32F358VCT6 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 72MHz | 72MHz | 72MHz | 72MHz |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 36 | 51 | 35 | 86 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 32K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V | 1.65V ~ 1.95V | 1.65V ~ 3.6V | 1.65V ~ 1.95V |
| Data Converters | A/D 4x12b; D/A 2x12b | A/D 4x12b; D/A 2x12b | A/D 16x12b, 21x16b; D/A 3x12b | A/D 4x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-LQFP | 64-LQFP | 48-LQFP | 100-LQFP |
| Supplier Device Package | 48-LQFP (7x7) | 64-LQFP (10x10) | 48-LQFP (7x7) | 100-LQFP (14x14) |
