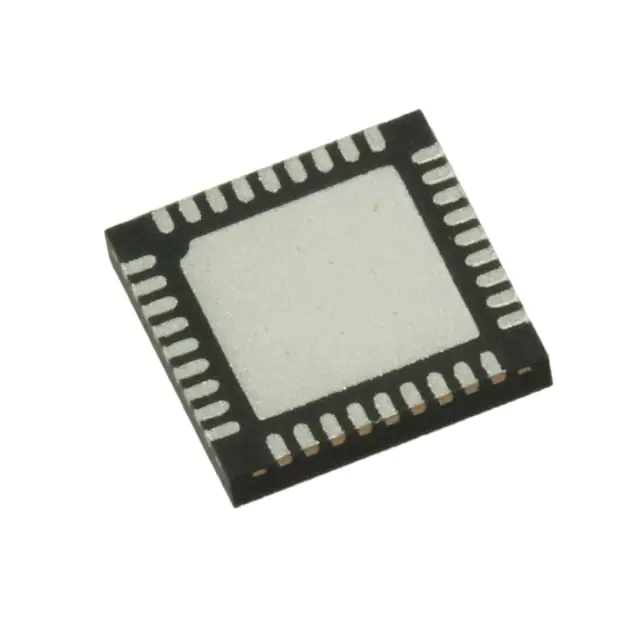

| Part Number | STM32F101T4U6A | STM32F101T6U6A | STM32F103T4U6A |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 36MHz | 36MHz | 72MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 | 26 | 26 |
| Program Memory Size | 16KB (16K x 8) | 32KB (32K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 4K x 8 | 6K x 8 | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 10x12b | A/D 10x12b | A/D 10x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-VFQFPN (6x6) | 36-VFQFPN (6x6) | 36-VFQFPN (6x6) |
