Please send RFQ , we will respond immediately.
| Part Number | STM32F100R8H7B | STM32F100R8T7B | STM32F100R8H6B |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 24MHz | 24MHz | 24MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 | 51 | 51 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

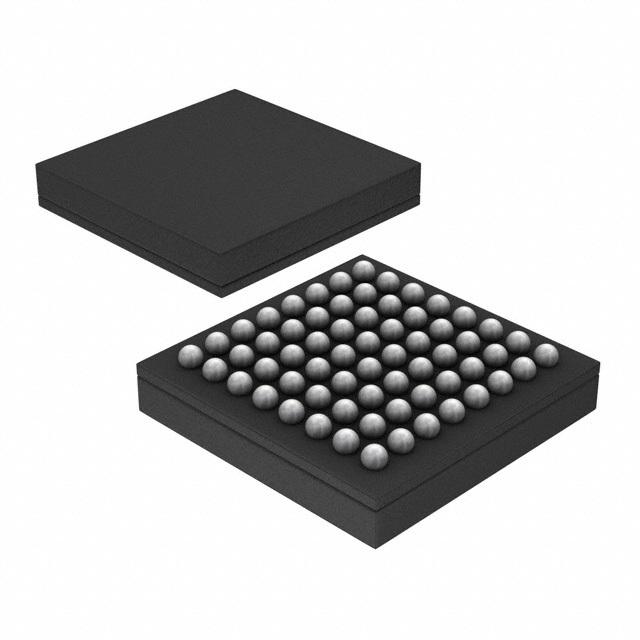

| Package / Case | 64-TFBGA | 64-LQFP | 64-TFBGA |
| Supplier Device Package | 64-TFBGA (5x5) | 64-LQFP (10x10) | 64-TFBGA (5x5) |
