Please send RFQ , we will respond immediately.

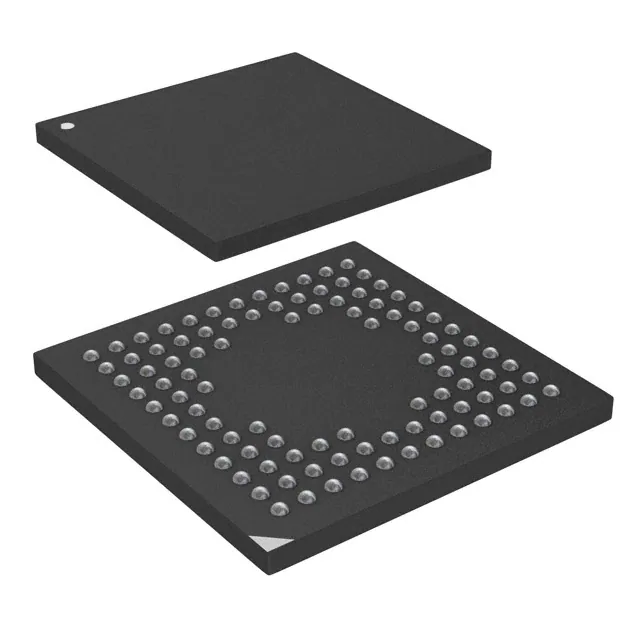

| Part Number | STM32F091VCH6 | STM32F091VCT6 | STM32F091VCH7 | STM32F098VCH6 | STM32F091RCH6 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 88 | 88 | 88 | 87 | 52 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 1.65V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-UFBGA | 100-LQFP | 100-UFBGA | 100-UFBGA | 64-UFBGA |
| Supplier Device Package | 100-UFBGA (7x7) | 100-LQFP (14x14) | 100-UFBGA (7x7) | 100-UFBGA (7x7) | 64-UFBGA (5x5) |
