| Part Number | STM32F042F6P7TR | STM32F042F6P6TR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz |
| Connectivity | CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB | CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 16 | 16 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 6K x 8 | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 1.65V ~ 3.6V |
| Data Converters | A/D 12x12b | A/D 12x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

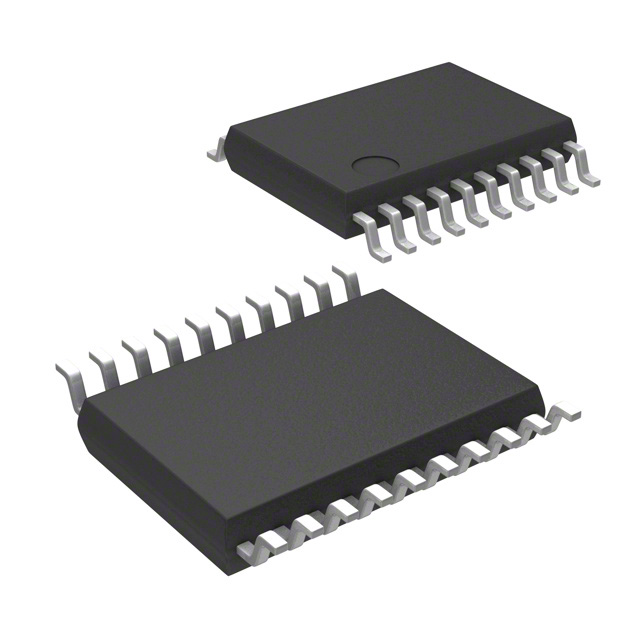

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 20-TSSOP |
