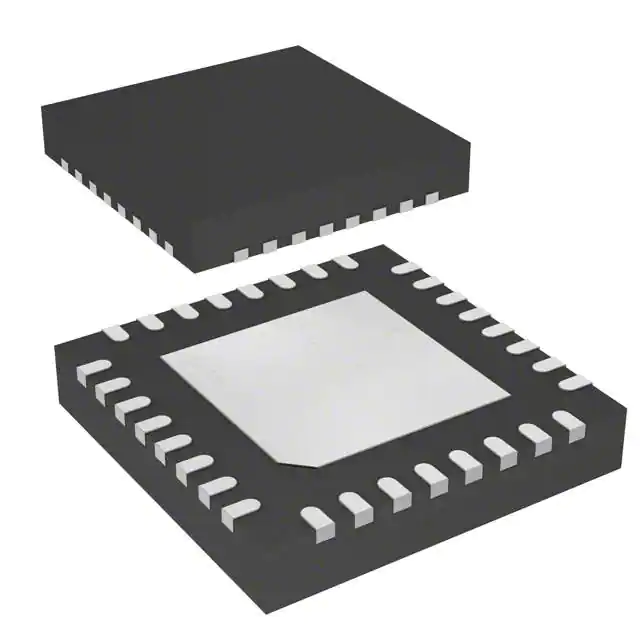

| Part Number | STM32F031K6U7 | STM32F051K6U7 | STM32F031G6U7 | STM32F031K6T7 | STM32F031K6U6 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT | DMA, I²S, POR, PWM, WDT |
| Number of I/O | 27 | 27 | 23 | 25 | 27 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 4K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Data Converters | A/D 13x12b | A/D 13x12b; D/A 1x12b | A/D 13x12b | A/D 13x12b | A/D 13x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-UFQFN Exposed Pad | 32-UFQFN Exposed Pad | 28-UFQFN | 32-LQFP | 32-UFQFN Exposed Pad |
| Supplier Device Package | 32-UFQFPN (5x5) | 32-UFQFPN (5x5) | 28-UFQFPN (4x4) | 32-LQFP (7x7) | 32-UFQFPN (5x5) |
