| Part Number | STLQ020J18R | STLQ020C18R |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.16V @ 200mA | 0.16V @ 200mA |
| Current - Output | 200mA | 200mA |
| Current - Quiescent (Iq) | 1 µA | 1 µA |
| Current - Supply (Max) | 150 µA | 150 µA |
| PSRR | 52dB ~ 45dB (100Hz ~ 10kHz) | 52dB ~ 45dB (100Hz ~ 10kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

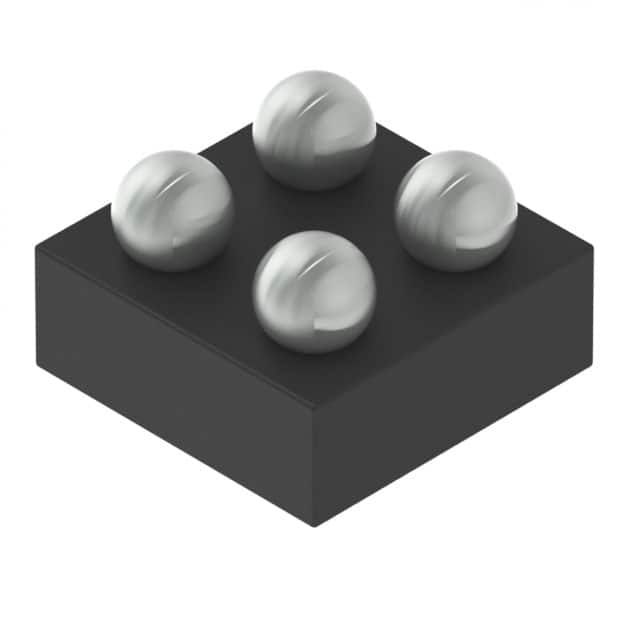

| Package / Case | 4-UFBGA, FCBGA | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 4-FlipChip (0.77x0.77) | SOT-323-5 |
