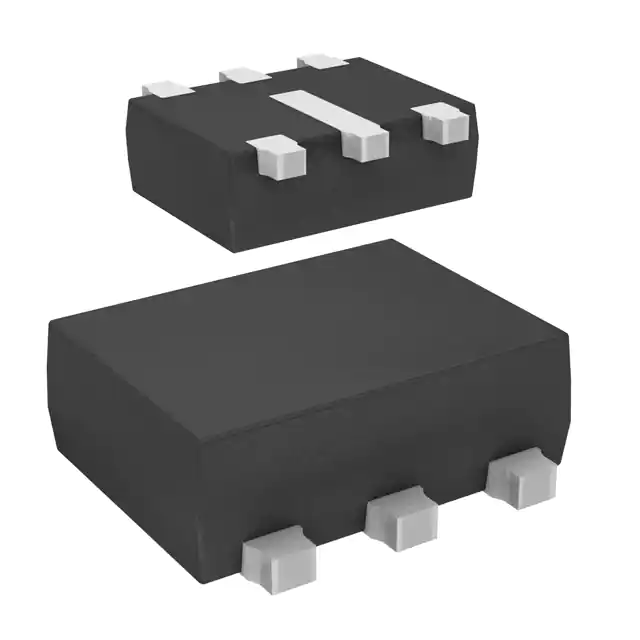

| Part Number | STLQ015XG15R | STLQ015XG25R | STLQ015XG18R | STLQ015XG12R |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 2.5V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.3V @ 150mA | 0.3V @ 150mA | 0.3V @ 150mA | - |
| Current - Output | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 2.4 µA | 2.4 µA | 2.4 µA | 2.4 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 40dB ~ 15dB (1kHz ~ 100kHz) | 40dB ~ 15dB (1kHz ~ 100kHz) | 40dB ~ 15dB (1kHz ~ 100kHz) | 40dB ~ 15dB (1kHz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 | SOT-666 | SOT-666 | SOT-666 |
