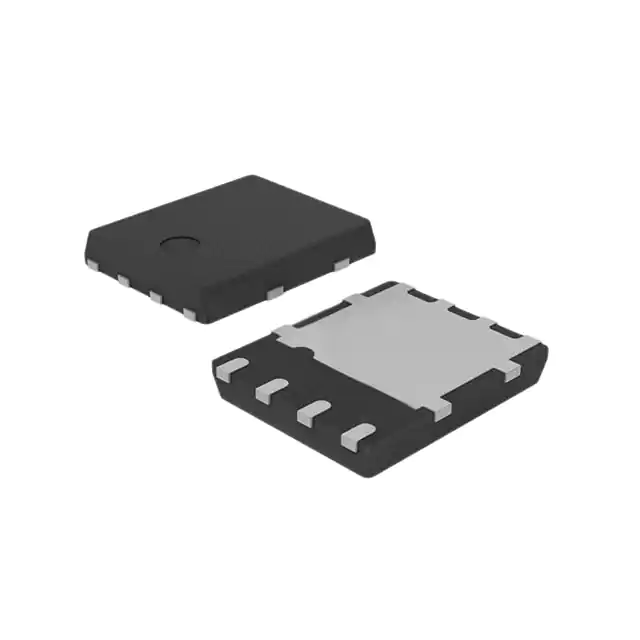

| Part Number | STL9N60M2 | STL9N65M2 | STL7N60M2 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active |
| FET Type | N-Channel | - | N-Channel |
| Technology | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | - | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 4.8A (Tc) | 4.5A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 860mOhm @ 2.4A, 10V | - | 1.05Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | - | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | - | 8.8 nC @ 10 V |
| Vgs (Max) | ±25V | - | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 320 pF @ 100 V | - | 271 pF @ 100 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 48W (Tc) | - | 4W (Ta), 67W (Tc) |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) HV | - | PowerFLAT™ (5x5) |
| Package / Case | 8-PowerVDFN | - | 8-PowerVDFN |
