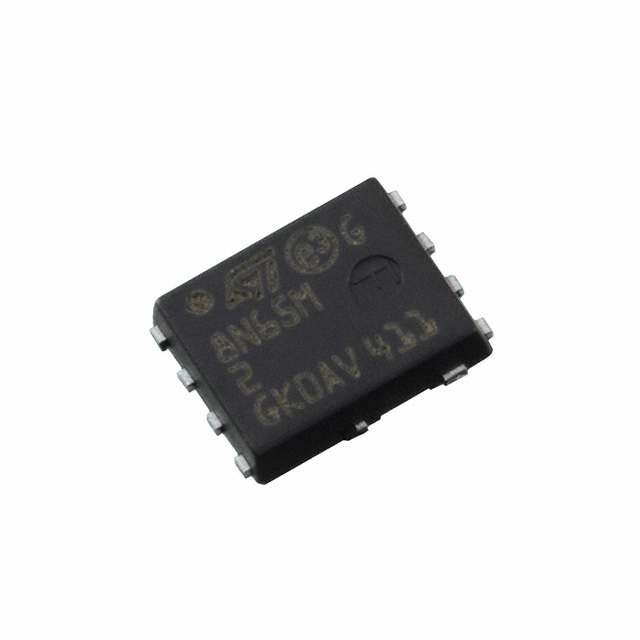

| Part Number | STL8N65M2 | STL9N65M2 | STL8N65M5 | STL3N65M2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Obsolete | Active |
| FET Type | N-Channel | - | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | - | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) | 4.5A (Tc) | 1.4A (Ta), 7A (Tc) | 2.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | - | 600mOhm @ 3.5A, 10V | 1.8Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | - | - | 5V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | 15 nC @ 10 V | 5 nC @ 10 V |
| Vgs (Max) | ±25V | - | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - | 690 pF @ 100 V | 155 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | - | 2.5W (Ta), 70W (Tc) | 22W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TA) | - | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | PowerFLAT™ (5x5) | PowerFlat™ (3.3x3.3) |
| Package / Case | - | - | 14-PowerVQFN | 8-PowerVDFN |
