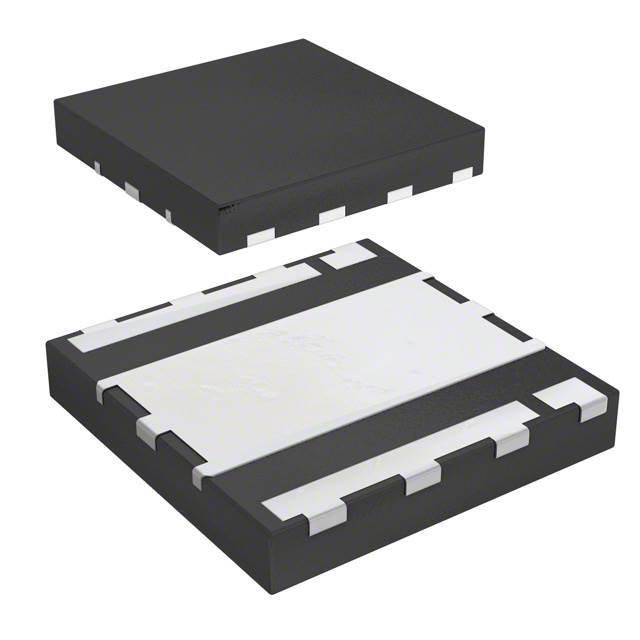

| Part Number | STL7NM60N | STL3NM60N | STL6NM60N |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Tc) | 650mA (Ta), 2.2A (Tc) | 5.75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 2.5A, 10V | 1.8Ohm @ 1A, 10V | 920mOhm @ 2.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 10 V | 9.5 nC @ 10 V | 13 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 363 pF @ 50 V | 188 pF @ 50 V | 420 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 68W (Tc) | 2W (Ta), 22W (Tc) | 70W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-PowerFLAT™ (5x5) | PowerFlat™ (3.3x3.3) | PowerFLAT™ (5x5) |
| Package / Case | 14-PowerVQFN | 8-PowerVDFN | 8-PowerVDFN |
