| Part Number | STL6N3LLH6 | STL6P3LLH6 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 3A, 10V | 30mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA (Min) | 1V @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 3.6 nC @ 4.5 V | 12 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 283 pF @ 24 V | 1450 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.4W (Tc) | 2.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

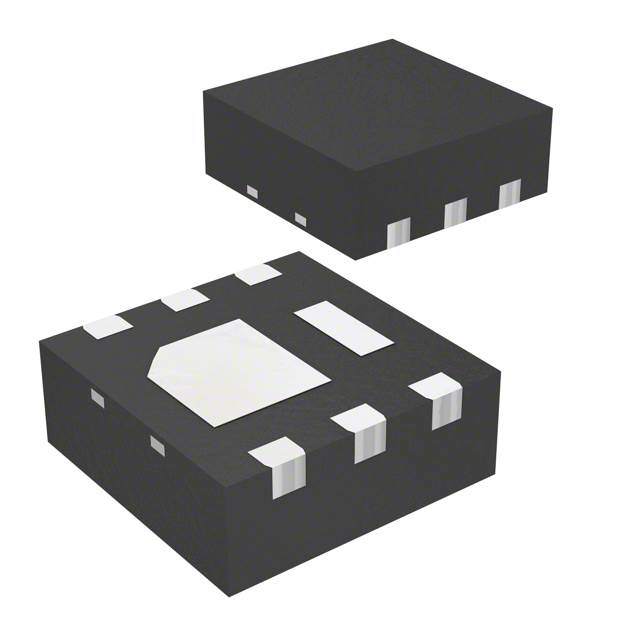

| Supplier Device Package | PowerFlat™ (2x2) | PowerFlat™ (3.3x3.3) |
| Package / Case | 6-PowerWDFN | 8-PowerVDFN |
