| Part Number | STL65DN3LLH5 | STL66DN3LLH5 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 65A | 78.5A |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 9.5A, 10V | 6.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 4.5V | 12nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 25V | 1500pF @ 25V |
| Power - Max | 60W | 72W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

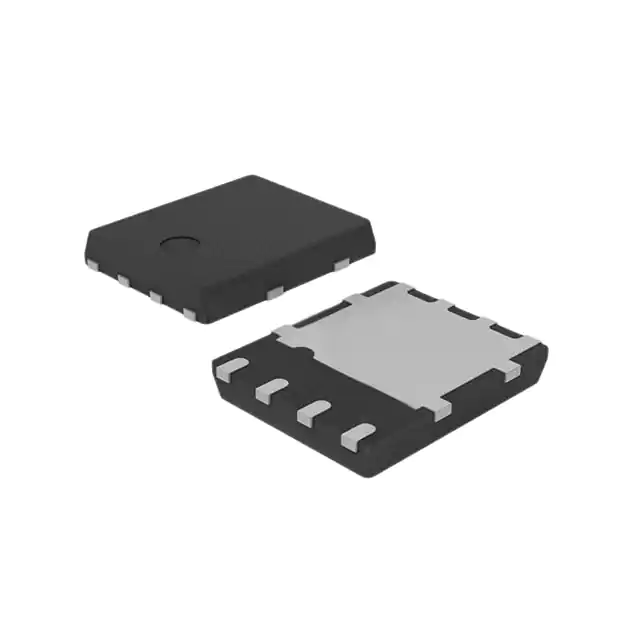

| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
