| Part Number | STL58N3LLH5 | STL51N3LLH5 | STL56N3LLH5 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) | 51A (Tc) | 56A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 7.5A, 10V | 14.5mOhm @ 6.3A, 10V | 9mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V | 5 nC @ 4.5 V | 6.5 nC @ 4.5 V |
| Vgs (Max) | +22V, -20V | ±22V | +22V, -20V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 25 V | 724 pF @ 25 V | 950 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 4.8W (Ta), 62.5W (Tc) | 62.5W (Tc) | 62.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

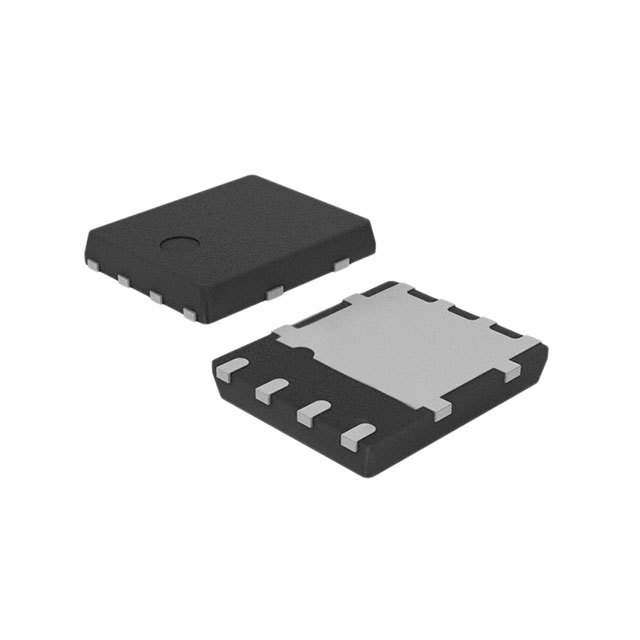

| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
