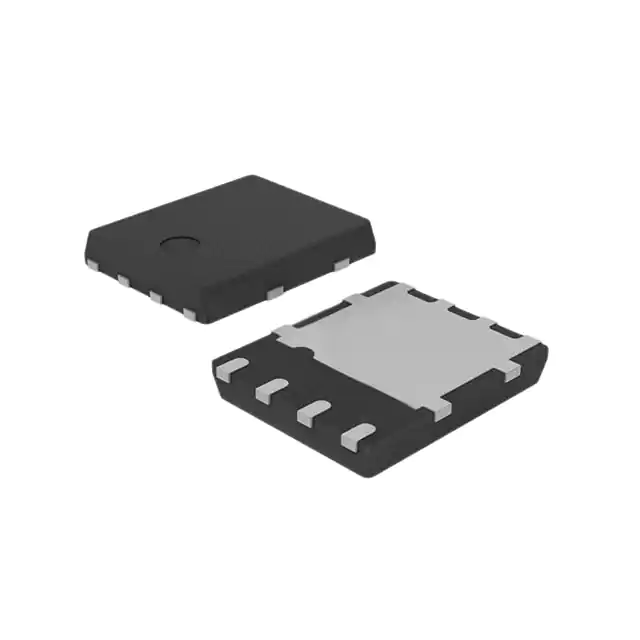

| Part Number | STL4N10F7 | STL7N10F7 | STL8N10F7 | STL3N10F7 | STL40N10F7 |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 18A (Tc) | 7A (Tj) | 35A (Tc) | 4A (Tc) | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2.25A, 10V | 35mOhm @ 3.5A, 10V | 20mOhm @ 4A, 10V | 70mOhm @ 2A, 10V | 24mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.8 nC @ 10 V | 14 nC @ 10 V | 22 nC @ 10 V | 7.8 nC @ 10 V | 19 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 408 pF @ 50 V | 920 pF @ 50 V | 2000 pF @ 50 V | 408 pF @ 25 V | 1270 pF @ 50 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 2.9W (Ta), 50W (Tc) | 2.9W (Ta), 50W (Tc) | 3.5W (Ta), 50W (Tc) | 2.4W (Tc) | 5W (Ta), 70W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (3.3x3.3) | PowerFlat™ (3.3x3.3) | PowerFlat™ (3.3x3.3) | PowerFlat™ (2x2) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 6-PowerWDFN | 8-PowerVDFN |
