STMicroelectronics-STL40N75LF3 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	19mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 5 V
Vgs (Max):	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds:	1300 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	75W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (5x6)
Package / Case:	8-PowerVDFN

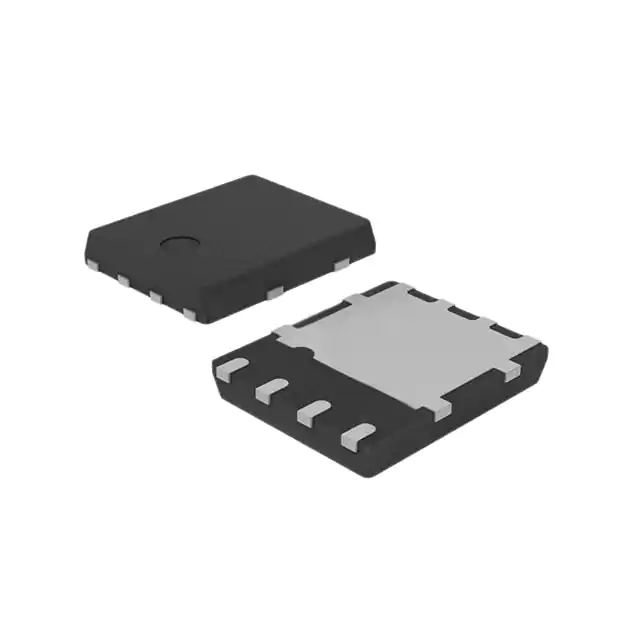

STMicroelectronics STL40N75LF3
