| Part Number | STL35N6F3 | STL85N6F3 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) | 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 3A, 10V | 5.7mOhm @ 8.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 60 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 3400 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 5W (Ta), 80W (Tc) | 80W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

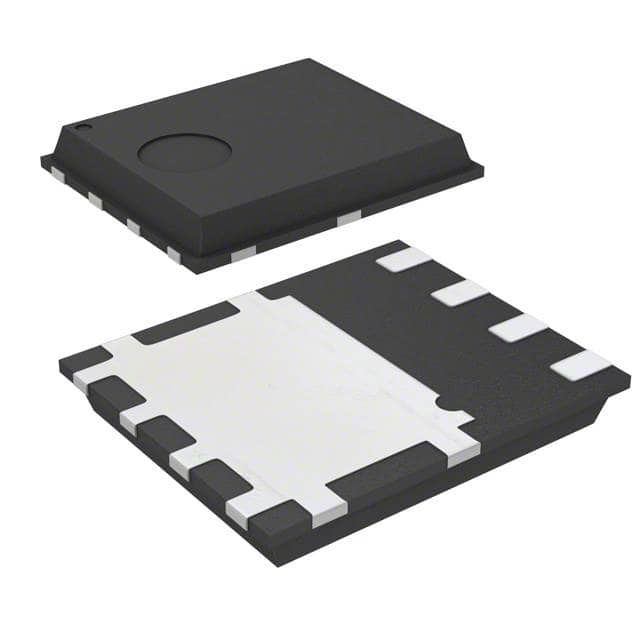

| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
