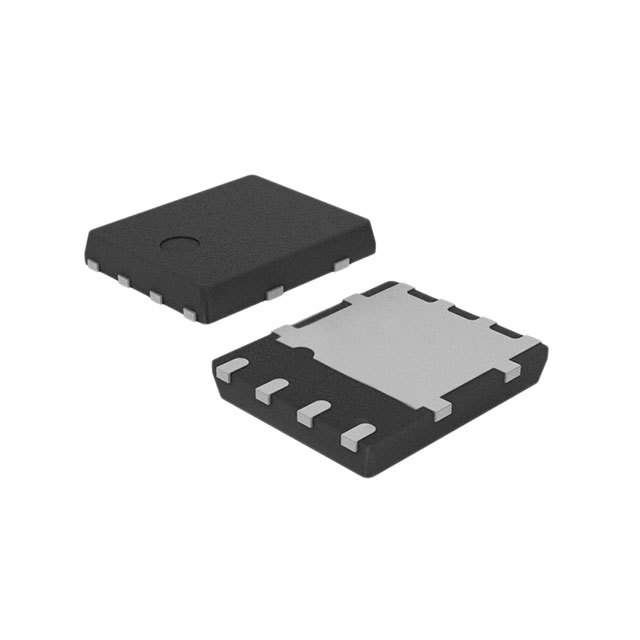

| Part Number | STL210N4F7AG | STL210N4LF7AG |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 16A, 10V | 1.6mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V | 56 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3600 pF @ 25 V | 4210 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 150W (Tc) | 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
