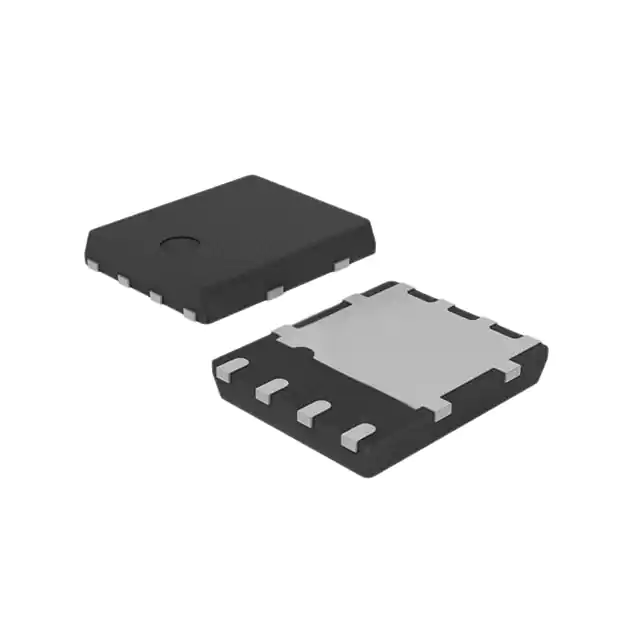

| Part Number | STL15N60M2-EP | STL25N60M2-EP | STL11N60M2-EP |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | 16A (Tc) | 5.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 418mOhm @ 4.5A, 10V | 205mOhm @ 8A, 10V | - |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA | 4.75V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 29 nC @ 10 V | - |
| Vgs (Max) | ±25V | ±25V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 590 pF @ 100 V | 1090 pF @ 100 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 55W (Tc) | 125W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) HV | PowerFlat™ (8x8) HV | PowerFlat™ (5x6) HV |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
