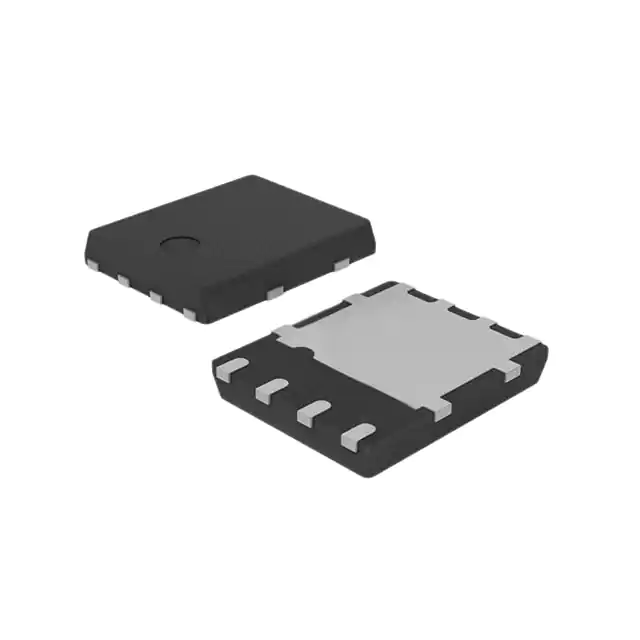

| Part Number | STL13N60DM2 | STL19N60DM2 | STL13N60M2 | STL33N60DM2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) | 11A (Tc) | 7A (Tc) | 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 370mOhm @ 4A, 10V | 320mOhm @ 5.5A, 10V | 420mOhm @ 4.5A, 10V | 140mOhm @ 10.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V | 21 nC @ 10 V | 17 nC @ 10 V | 43 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 730 pF @ 100 V | - | 580 pF @ 100 V | 1870 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 52W (Tc) | 90W (Tc) | 55W (Tc) | 150W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) HV | PowerFlat™ (8x8) HV | PowerFlat™ (5x6) HV | PowerFlat™ (8x8) HV |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
