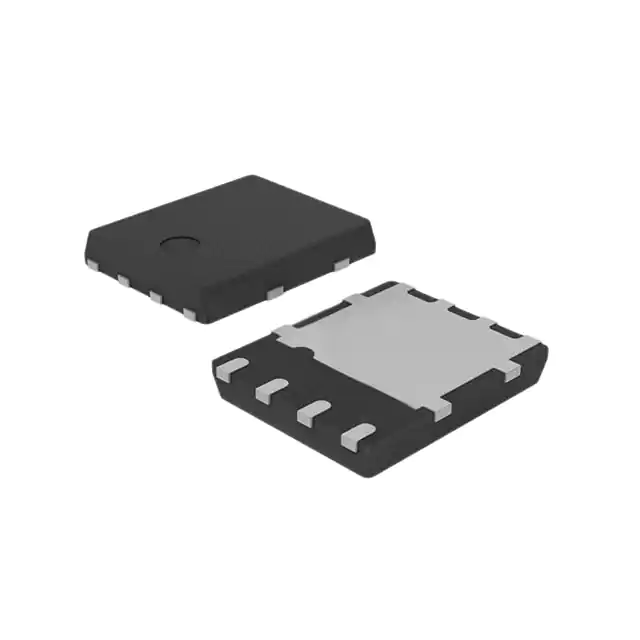

| Part Number | STL12N3LLH5 | STL15N3LLH5 | STL10N3LLH5 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) | 15A (Tc) | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 6A, 10V | 5.4mOhm @ 7.5A, 10V | 19mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V | 12 nC @ 4.5 V | 6 nC @ 4.5 V |
| Vgs (Max) | ±22V | ±22V | ±22V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 25 V | 1500 pF @ 25 V | 900 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2W (Ta), 50W (Tc) | 2W (Ta), 50W (Tc) | 2W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (3.3x3.3) | PowerFlat™ (3.3x3.3) | PowerFlat™ (3.3x3.3) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
