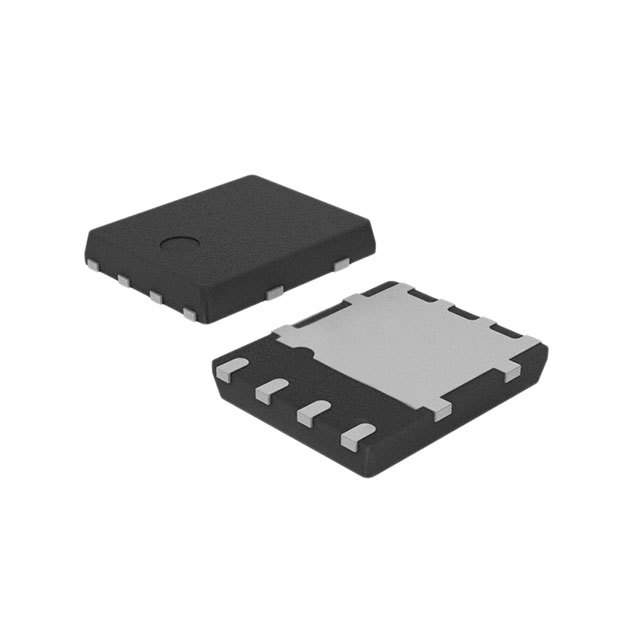

| Part Number | STL110NS3LLH7 | STL160NS3LLH7 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 14A, 10V | 2.1mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 1mA | 2.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 13.7 nC @ 4.5 V | 20 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2110 pF @ 25 V | 3245 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 4W (Ta), 75W (Tc) | 84W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
