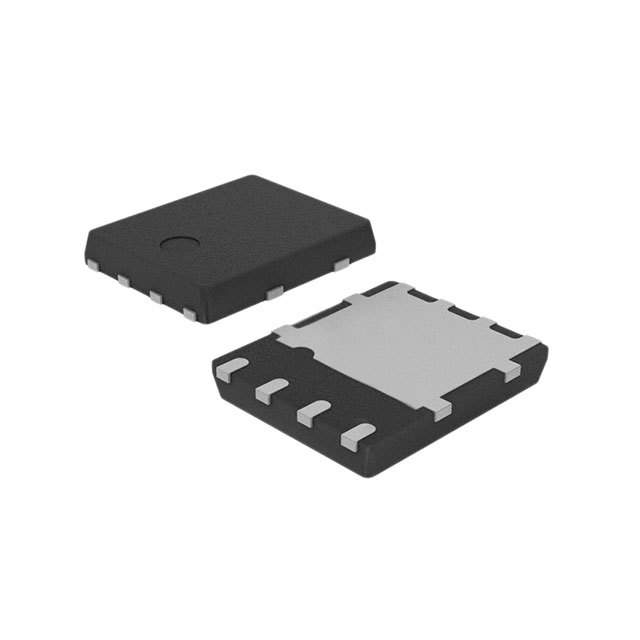

| Part Number | STL100N8F7 | STL120N8F7 | STL130N8F7 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 120A (Tc) | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6.1mOhm @ 10A, 10V | 4.4mOhm @ 11.5A, 10V | 3.6mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4V @ 250µA | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 46.8 nC @ 10 V | 60 nC @ 10 V | 96 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3435 pF @ 40 V | 4570 pF @ 25 V | 6340 pF @ 40 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 4.8W (Ta), 120W (Tc) | 4.8W (Ta), 140W (Tc) | 135W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) | PowerFlat™ (5x6) | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
