STK20N75F3

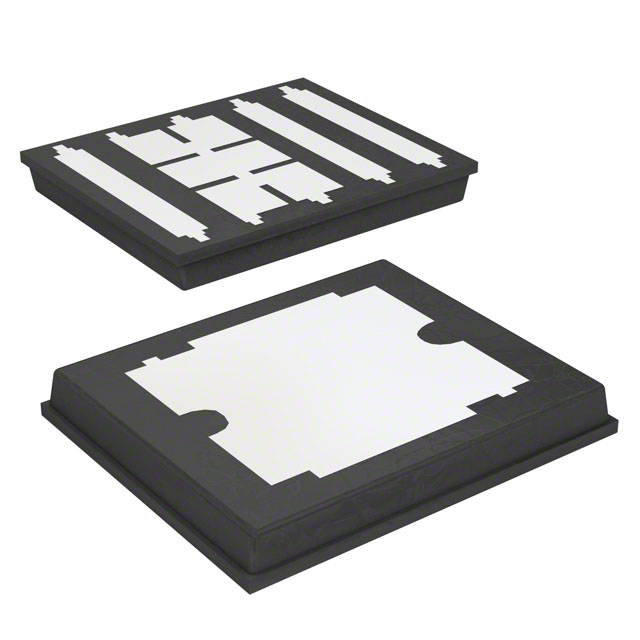

STK20N75F3 Image
×
Favorite
Compare
Add to RFQ
Share:
STMicroelectronics STK20N75F3
Manufacturer No:
STK20N75F3
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Datasheet:
STK20N75F3 Datasheet
ECAD Model:
-
Description:
MOSFET N-CH 75V 20A POLARPAK
Delivery:
Payment:
Product Attributes
FET Type:
N-Channel
Technology:
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):
75 V
Current - Continuous Drain (Id) @ 25°C:
20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):
10V
Rds On (Max) @ Id, Vgs:
7mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:
53 nC @ 10 V
Vgs (Max):
±20V
Input Capacitance (Ciss) (Max) @ Vds:
3150 pF @ 25 V
FET Feature:
-
Power Dissipation (Max):
5.2W (Tc)
Operating Temperature:
-55°C ~ 150°C (TJ)
Mounting Type:
Surface Mount
Supplier Device Package:
PolarPak®
Package / Case:
PolarPak®
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
608
