STMicroelectronics-STI5N52U - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	525 V
Current - Continuous Drain (Id) @ 25°C:	4.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.5Ohm @ 2.2A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	16.9 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	529 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	70W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I2PAK
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA

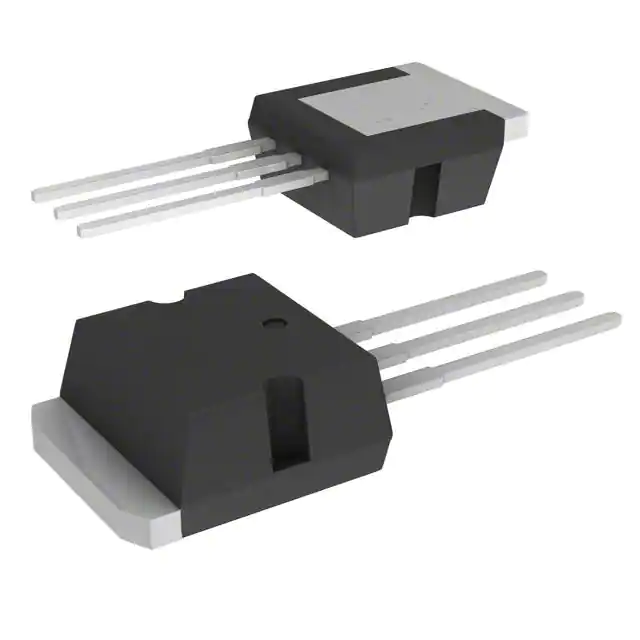

STMicroelectronics STI5N52U
