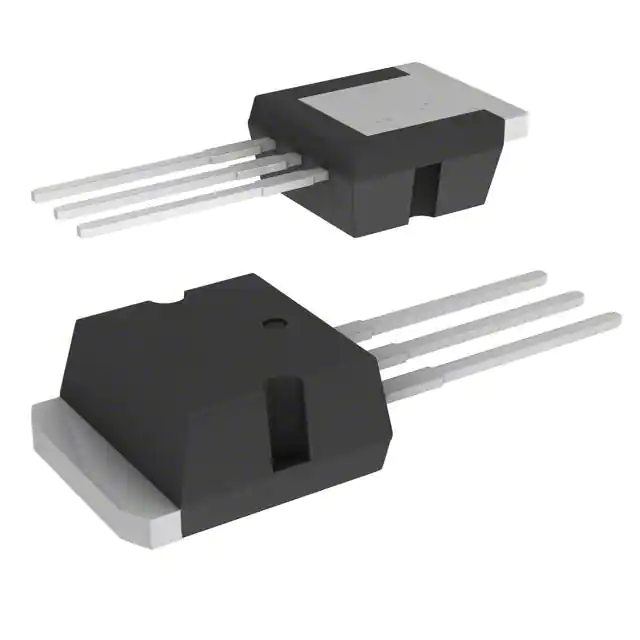

| Part Number | STI26NM60N | STI22NM60N | STI23NM60N | STI24NM60N |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 16A (Tc) | 19A (Tc) | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 10A, 10V | 220mOhm @ 8A, 10V | 180mOhm @ 9.5A, 10V | 190mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V | 44 nC @ 10 V | 60 nC @ 10 V | 46 nC @ 10 V |
| Vgs (Max) | ±25V | ±30V | ±25V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1800 pF @ 50 V | 1330 pF @ 50 V | 2050 pF @ 50 V | 1400 pF @ 50 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 140W (Tc) | 125W (Tc) | 150W (Tc) | 125W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAK | I2PAK | I2PAK | I2PAK |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
